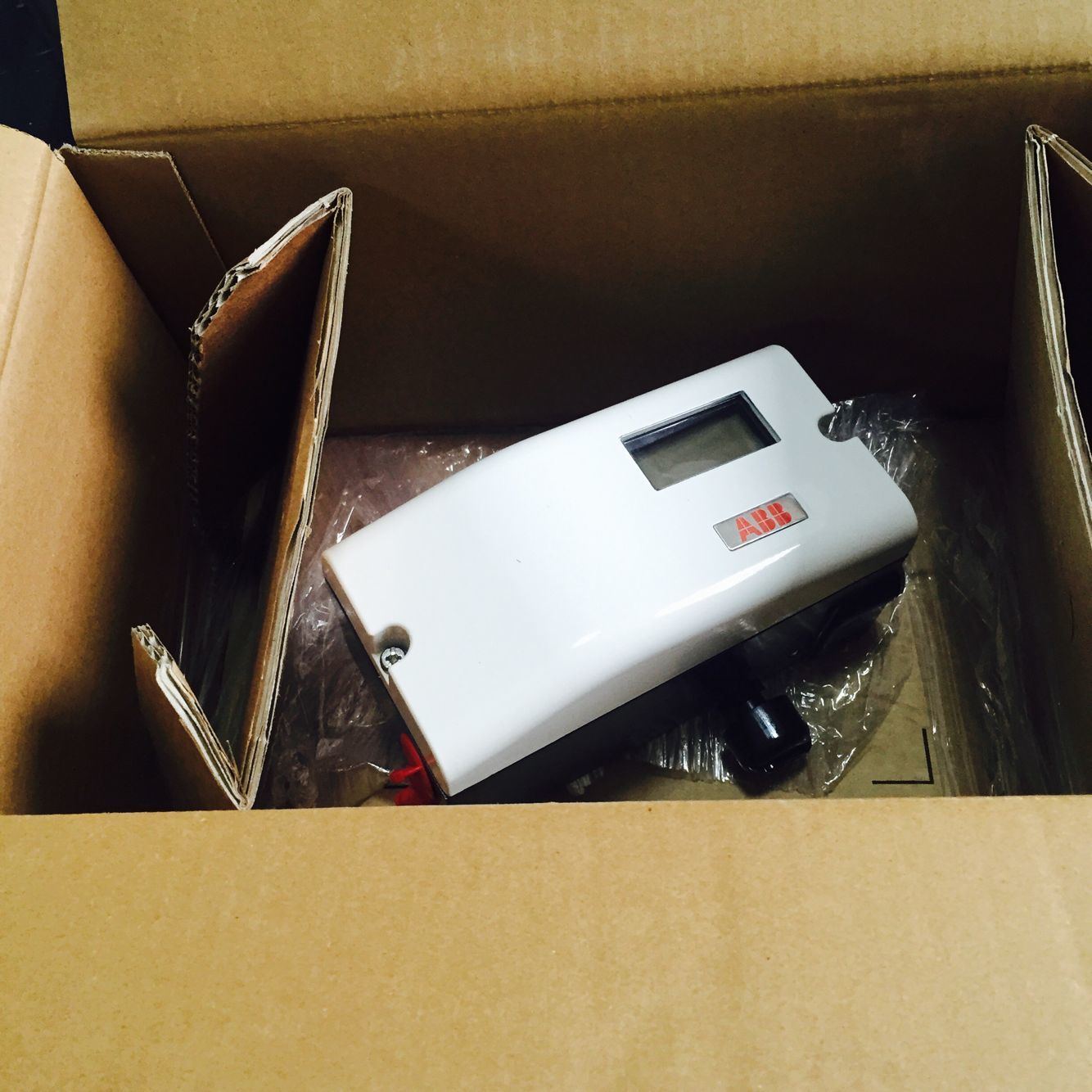

Valve Positioner, ABB, TZIDC, V18345-2010460501- Double Acting. 24V, Serial Nr: 895328

Product Description:

One of the standout features of the Electro-Pneumatic Valve Positioner V18345 is its robust construction, which allows it to operate efficiently within an operating temperature range of -25°C to +60°C. This broad temperature tolerance ensures that the positioner can function reliably in harsh environments, from cold storage facilities to high-temperature industrial plants. Its durability makes it suitable for use in industries such as chemical processing, oil and gas, water treatment, and power generation, where precise valve control is critical for system safety and efficiency.

The V18345 positioner is designed with a compact single package size of 40X40X40 cm, making it easy to install and integrate into existing valve assemblies without requiring significant space. This compact size does not compromise its capabilities; instead, it facilitates flexible installation options and helps reduce the overall footprint of valve control systems. The product’s design emphasizes ease of maintenance and accessibility, allowing operators to perform routine checks and adjustments with minimal downtime.

Electrically, the V18345 valve positioner operates on a maximum voltage of 30 Volts DC, ensuring low power consumption while maintaining high precision in valve positioning. The electrical interface is standardized with a 1/2 NPT connection, which simplifies the integration process with various control systems and pneumatic air supplies. The air supply interface is also designed to maintain consistent and responsive valve actuation, ensuring that the valve positioner can accurately translate electrical input signals into precise mechanical movements.

Each model variant within the V18345 series, such as V18345-1020421001, V18345-1010521001, and V18345-1010421001, offers specific configurations and calibrations to accommodate different types of valves and control scenarios. These options provide engineers and system designers with the flexibility to select the most suitable valve positioner for their application, whether it involves modulating control, on/off control, or position feedback functions. The versatility of the V18345 series makes it an ideal choice for a wide array of pneumatic valve control tasks.

In summary, the Electro-Pneumatic Valve Positioner V18345 is a reliable, efficient, and versatile solution for precise valve control. Its ability to operate under extreme temperature conditions, compact size, low voltage requirements, and standardized electrical and pneumatic interfaces make it an indispensable component in modern industrial automation. With model options like V18345-1020421001, V18345-1010521001, and V18345-1010421001, users have access to tailored solutions that meet diverse operational needs, ensuring optimal valve performance and system reliability across various industries.

Features:

• Product Name: Pneumatic Valve Positioner
• Model Numbers: ABB V18345-102012100, V18345-1010521001
• Enclosure Material: Aluminum Diecasting or 316SS
• Minimum Control Current: 4-20mA Feedback
• Electrical Interface: 1/2 NPT; Air Supply
• Operating Temperature Range: -25°C to +60°C
• Weight: 1.5 Kg (3.3 Lbs)

Technical Parameters:

Applications:

The ABB Pneumatic Valve Positioner, model number V18345-2010460501, is a highly reliable and precise electro-pneumatic valve positioner designed for various industrial applications. Manufactured in Germany, this valve positioner is known for its superior build quality, utilizing aluminum diecasting or 316SS for the enclosure material, ensuring durability and resistance to harsh environments. Weighing only 1.5 kg (3.3 lbs), the device is compact yet robust, making it suitable for installation in tight spaces without compromising on performance.

This ABB valve positioner operates efficiently with an AC 220 V power supply and supports a maximum voltage of 30 Volts DC, providing flexibility in different electrical setups. It is specifically engineered to control valve actuators by converting electrical signals into precise pneumatic outputs, enabling accurate valve positioning in process automation systems.

The V18345-2010460501 model is ideal for use in industries such as oil and gas, chemical processing, water treatment, power generation, and manufacturing plants where precise control of fluid flow, pressure, and temperature is critical. It excels in scenarios requiring rapid response and high accuracy, such as controlling throttle valves, regulating valves, and on/off valves in complex piping systems.

ABB’s V18345 series, including the V18345-1020421001 variant, is widely applied in both new installations and retrofitting projects to enhance existing control loops. Its electro-pneumatic nature allows seamless integration with digital control systems, making it suitable for modern automation environments that demand reliability and efficiency.

Typical application occasions include emergency shutdown systems, continuous process control, and safety-critical valve positioning tasks. The valve positioner’s resistance to corrosion and environmental factors, due to its premium enclosure materials, makes it particularly suited for outdoor installations and harsh operating conditions.

In summary, the ABB Pneumatic Valve Positioner V18345-2010460501 is a versatile and durable solution for precise valve control in various industrial scenarios. Its advanced technology, combined with the reputable ABB brand, ensures optimal performance, longevity, and safety across multiple application occasions, including those requiring the V18345-2010460501 variant for specific control needs.
