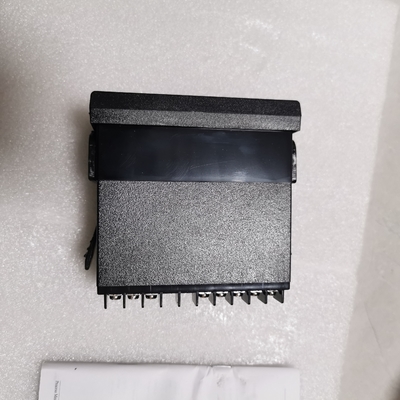

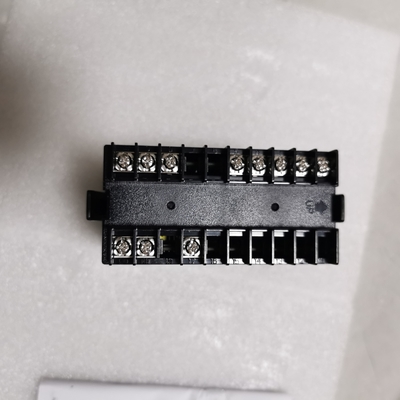

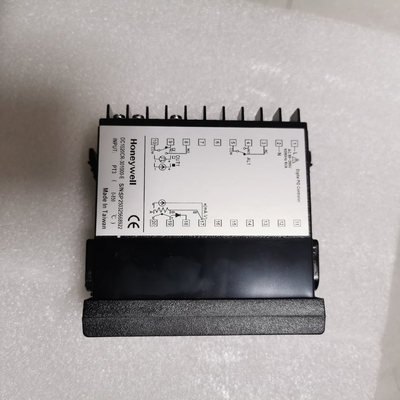

Original Honeywell Temperature Controller DC1040CR-70100B-E,Honeywell Instrumentation DC1040CR,CT,CL,PR,PT,PL-701000,70100B-E

DC1020 74.5 mm - 2.97 in 13.5 mm 0.53 in 6 mm 0.24 in 86 mm 3.39 in 96 mm - 3.78 in 48 mm - 1.89 in 60 mm - 2.36 in 91mm 3.58 in 45.5mm 1.79 in 116 mm 4.57 in DC1030 74.5 mm - 2.97 in 13.5 mm 0.53 in 6 mm 0.24 in 66 mm - 2.60 in 72 mm - 2.83 in 72 mm - 2.83 in 91 mm - 3.58 in 69.55 mm 2.74 in 91 mm - 3.58 in 69.55 mm 2.74 in EXTERNAL DIMENSIONS, PANEL CUTOUT DC1040 96 mm - 3.78 in 6 mm 0.24 in 74.5 mm - 2.97 in 13.5 mm 0.53 in 116 mm - 4.57 in 96 mm - 3.78 in HUMAN / MAN INTERFACE 116 mm - 4.57 in Higher display : 4 digits dedicated to display the PV. In configuration mode, this display indicates the value of the parameter or the patameter selected. Lower display : 4 digits dedicated to display the SP ; In configuration mode, indicates the name of the parameter. Bargraph : A 10 green LEDs bargraph indicates the value of the output in percentage. LEDs : OUT1 : Status of output 1. OUT2 : Status of output 2. AT : When the LED is ON an automatic tuning of the parameters is on going. AL1 : AL2 : AL3 : MAN : PRO : Status of alarm 1. Status of alarm 2. Status of alarm 3. ON if we are in Auto mode. OFF if manuel mode. Flickers when a program is running. Continuously ON when a program is suspended. OFF when no program is running. 90 mm 3.54 in 90 mm 3.54 in SET allows to change from one parameter to another. Pressing it for 5 seconds grants access to the configuration level 1 (PID parameters+locking the instrument). Pressing simultaneously for 5 seconds on the left arrow and SET grants access to the configuration level 2 (input type, alarmes, SP limits, field calibration, communication parameters, …). A/M allows to switch from Auto to Manual. Pressing this key decreases the parameter or digit being modified. When modifying a parameter, pressing this key allows to change the digit to modify. Pressing this key increases the parameter or digit being modified. 6 51-52-03-33 08/03 51-52-03-33 08/03 7 MODEL SELECTION GUIDE • Select the desired Key Number. • Make One selection each from Tables I through III. Industrial Measurement and Control Honeywell Inc. Japan : Industrial Operations Tokyo, 4-28-1 Nishi-Rokugo Othu-ku, Tokyo 144, Japan, Asia : Honeywell Asia Pacific Inc., Room 3213-3225, Sun Hung Kai Centre, No. 30 Harbour Road, Wanchai, Hong Kong
